Products

Explore our premium range of sealing solutions designed for efficiency, reliability, and durability. At Steam Seal Products | Stuffer®, we combine advanced technology with decades of expertise to deliver customized products that meet the specific needs of diverse industries.

Gland Packing

High-performance Non-Asbestos Gland Packing designed for superior sealing under extreme pressure and temperature conditions. Ideal for pumps and valves, ensuring minimal leakage and maximum efficiency.

Die-Formed Rings

Customized Die-Formed Rings manufactured with precision to provide exceptional sealing for demanding applications across industries.

Ropes & Gaskets

Durable Non-Asbestos Ropes and high-quality Tanged and Spiral Wound Gaskets tailored for critical applications, offering excellent sealing and extended service life.

Metallic Gaskets

Metallic gaskets adhering to ASME B.16.20 standards, ensuring high-pressure and high-temperature sealing for industrial flanges and joints.

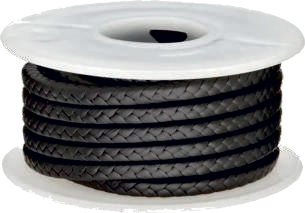

CARBON FIBRE BRAIDED PACKING

SSP - 9100

Service Media and Conditions Acid & Alkali, Caustics, Liquor, Steam, Boiler feed Water, Condensate, DM Water, Fuel Oil, Lube Oil, Solvents, Oil, Gases, Hydrocarbons etc.

Temperature	600°C
Max Velocity	25 m/s
pH	0-14

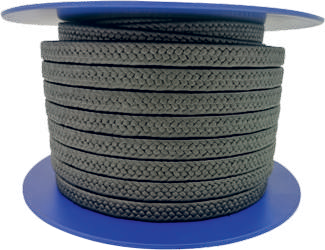

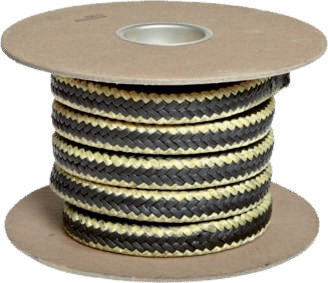

EXPANDED PTFE / GRAPHITE PACKING
WITH PURE ARAMID CORNERS

SSP - 8100 Er SSP - 8200

Service Media and Conditions Acid & Alkali, Caustics, Liquor, Steam, Boiler feed Water, Condensate, DM Water, Fuel Oil, Lube Oil, Solvents, Oil, Gases, Hydrocarbons etc.

Temperature	600°C
Max Velocity	25 m/s
pH	0-14

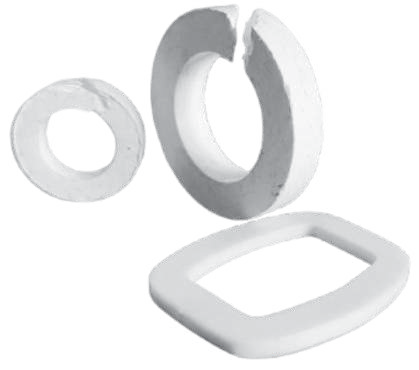

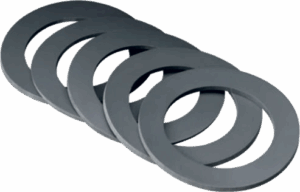

PTFE GASKETS Sr RINGS I SSP

4100 PTFE

Highly corrosive chemicals, ammonia charge pumps it carbonate recycle pumps, strong as well as weak acid Er alkali, chemicals, foodstuffs, pharmaceutical industry applications, drinking water, hydrogen etc.

Temperature	-200°C to 260°C (Steam)
Velocity	5 m/s
pH	0 to14

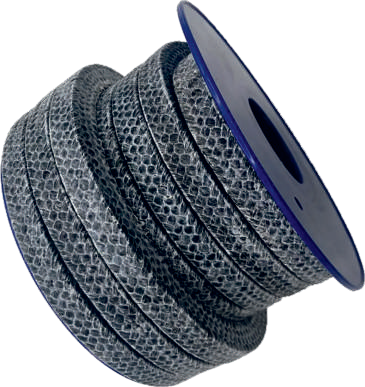

EXPANDED GRAPHITE BRAIDED PACKIN

SSP - 3200 I SSP - 3110 INCONEL I SW - 3220 SS

Service Media and Conditions Superheated & Saturated steam, all non-oxidizing liquid & gases, Hydrocarbons, Dyes & Chemicals, Fuel oil & Lube oil etc.

Temperature	-250°C to 600°C (Steam)
Pressure	Upto 450 bar
pH	0 to 14

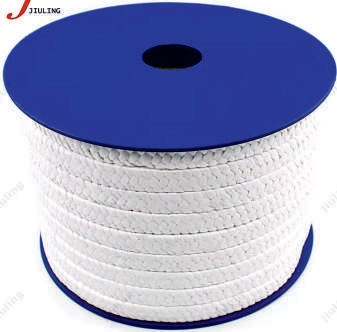

EXPANDED PTFE YARN PACKING

SSP - 4000

Highly corrosive chemicals, ammonia charge pumps, strong as well as weak acid b alkali, chemicals, foodstuffs, pharmaceutical industry applications, drinking water, hydrogen etc.

Temperature	-200°C to 260°C (Steam)
Velocity	5 m/s
pH	0 to 14

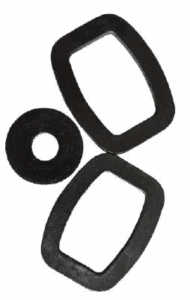

GRAPHITE / NON ASBESTOS GASKET

SSP 3100 G

Service Media and Conditions Superheated & Saturated steam, all non-oxidizing liquid & gases, Hydrocarbons, Dyes & Chemicals, Fuel oil & Lube oil etc.

Temperature	-200°C to 650°C (Steam)
Pressure	Upto 300 bar

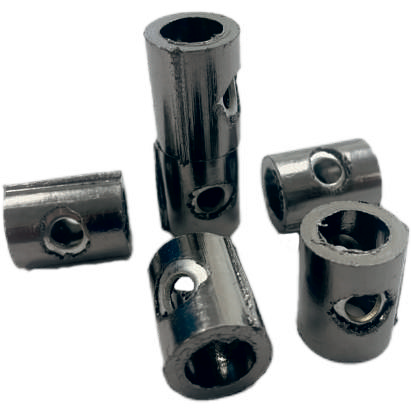

GRAPHITE SLEEVE WITH SS-304 EYELETS

SSP 3100 GS

Graphite Packing sleeves are used in many brands of gauge cock, to prevent leakage and to ensure effective operation. They are made from high purity graphite, with stainless steel eyelets, the computer controlled compression, ensure a standard, quality product. A popular application of graphite sleeve is to seal the drain cocks for level gauges, use of graphite sleeves provides smooth and reliable operation of the cocks and high resistance to erosive action of the medium and pollution.

Temperature

200°C to 300°C (Non Oxidizing)

-200°C to 500°C (Oxidizing)

-200°C to 650°C (Steam)

0 to14 (Except Strong Oxidisers)

SPW SPIRAL WOUND GASKETS

SSP-3100 G

Spiral wound gaskets are widely used in major process industries as Gasketing solution. These gaskets are made from different filler materials such as PTFE, GRAPHITE and other non-Asbestos materials. The stainless steel cover depends on the required grade in the process fluid such as SS-304/316/INCONEL/MONEL/UNS31803 etc. These gaskets are manufactured as per standard in ASME B16.20 in different pressure classes or in customised form as per demand. Size range starts from 1/2″ to 24″. These gaskets are manufactured with or without inner and outer rings as per the groove and flange sizes. Inner ring and outer ring material composition are defined and supplied as per material grade demand.

Temperature	650°C
Pressure	Upto 250 Bar Max
pH	0 to 14

GRAPHITE TANGED GASKETS

SSP 3100 G METALLIC

Graphite tanged gaskets are used in the chemical and petrochemical industries, in steam systems, and for flange gaskets for piping and machinery. They are often less expensive than MLS gaskets and can seal on rougher surfaces.

Material	Graphite reinforced with tanged stainless steel
Temperature	-200°C to 650°C, depending on the application
pH	Vaccum to 140 bar
Flexibility	Flexible with high recovery and no aging
Impermeability	Impermeable to gases and liquids
Compressibility	45%
Recovery	20%

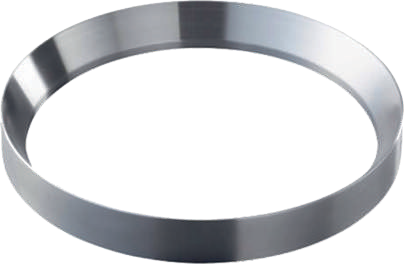

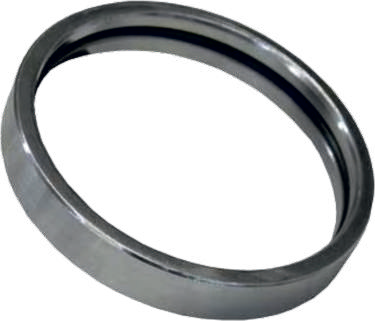

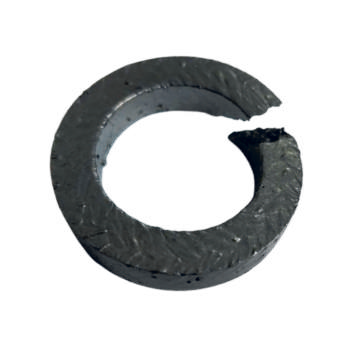

PRESSURE SEAL RING REINFORCED WITH SS-304/SS-3161

SS-304/SS-3161 SSP 3100 PSR

Much better substitute for soft iron gaskets
Vertical reinforcement of SS wire net provides superb mechanical strength
Does not damage parent equipment
Approved by a host of valve makers

Service Media and Conditions	Superheated and saturated steam, all non-oxidising liquids and gases, hydrocarbons, dyes and chemicals, fuel oil and lube oil etc
Temperature	-240°C to 650°C
pH	0 to 14
Max Pressure	500 bar (static)
Applications	Valve bonnets

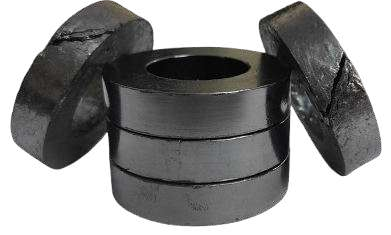

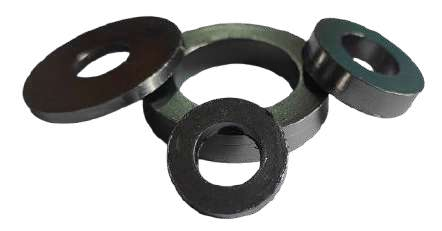

FLEXIBLE GRAPHITE RINGS

SSP — 3100

Service Media and Conditions	Superheated & Saturated steam, all non-oxidizing liquid & gases, Hydrocarbons, Dyes & Chemicals, Fuel oil & Lube oil etc.
Temperature	-200°C to 650°C (Steam)
Pressure	Upto 300 bar (static)
pH	14

EXPANDED GRAPHITE BRAIDED RINGS
WITH REINFORCED INCONEL WIRE

EXPANDED GRAPHITE BRAIDED RINGS WITH REINFORCED INCONEL WIRE I SSP — 3500 FE

SSP 3500FE Inconel jacketed expanded graphite braided packing, self-lubricating, non-hardening, dimensionally stable and resistant to gases and fluids as well as heat, pressure and chemicals. It’s high temperature flexible graphite and Inconel® filament jacket affords mechanical stability while the advanced construction provides leakage control and high integrity in steam service.

Certified as per API 622, 3rd edition
Low emission graphite packing (Leakage <100ppm )

Service Media and Conditions	Superheated and saturated steam, Hydrogen, All liquids & gases, Hot ash, hydrocarbons, dyes and chemicals, fuel oil and lube oil etc.
Temperature	240°C to 650°C
Pressure	550 bar (static)
pH	14

SSP 3100.3500 FE (FUGITIVE EMISSION)

SSP 3100.3500 FE

SSP 3100.3500 FE (FUGITIVE EMISSION) BRAIDED GRAPHITE COMBINATION PACKING SET

Combination set consisting of SSP 3500FE Inconel jacketed expanded graphite braided packing as end rings and SSP 3100FE flexible pure graphite die-formed packings as intermediate rings.

The most advanced technology valve packing set designed for high pressure application and extreme performance.
Certified as per API 622, 3rd edition.
Low emission graphite packing (Leakage .100ppm) High purity graphite with COU0S100 inhibitor and low detrimental materials like chlorides, fluorides and sulphides, eliminates the chance of decomposition at elevated temperature and formation of oxide, thereby reducing volume loss and increasing tightness.
The braided end rings are excellent wiper rings, which prevent build up of free graphite/contamination on the valve stem, increase extrusion resistance, pressure resistance and dimensional stability.
Packing set treated with a high temperature resistant solid lubricating agent to reduce friction even at elevated temperature.

Service Media and Conditions	Steam, hydrocarbons, hydrogen, catalysts, oils and gases, acid and alkali etc
Temperature	-196°C to 540°C
Pressure	425 bar (static)
pH	0 to 14
Applications	Valves
